NanoPi2

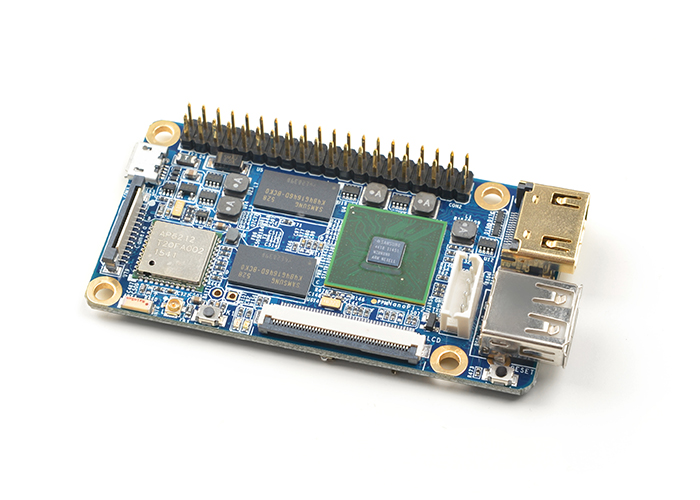

The NanoPi2 is a newly released ARM board by FriendlyARM which advances the NanoPi by featuring Samsung’s S5P4418 Quad Core A9@1.4GHz processor, 1G 32bit DDR3 RAM, rich video and display interfaces and two MicroSD slots. Its Quad Core A9@1.4GHz processor and 1G RAM make Linux and Android booted from a TF card fast and smoothly. Its adoption of the Raspberry Pi’s GPIO pin header makes it compatible with both Raspberry Pi’s external GPIO modules and Arduino’s shield boards. Its two MicroSD slots make it support up to two external TF cards’ storage. Its video and display interfaces include a DVP camera interface, an HDMI interface and an LCD interface which make it work with various popular display devices. The NanoPi2’s on-board AP6212 Wireless and Bluetooth chip supports 802.11 b/g/n, AP mode, BLE 4.0 and HS mode.
On the NanoPi2’s wiki FriendlyARM open sources its schematics, PCB, bootloader, kernel and file systems, and provides plenty of tutorials and code samples.
Features
- SoC: Samsung S5P 4418 Quad Core Cortex-A9, 1.4G Hz
- System Memory: 1GB 32bit DDR3 RAM
- Storage: 2 x Micro SD Slot
- Connectivity: AP6212 Wireless and Bluetooth, 802.11 b/g/n, AP mode, BLE 4.0, HS mode
- HDMI: 1 x HDMI 1.4A, Type-A
- LCD: 0.5 mm spacing 45 pin interface
- Camera: 0.5mm spacing 24 pin DVP interface
- GPIO: 40 pin GPIO pin header, compatible with Raspberry Pi’s GPIO pin header
- Debug Serial Port/UART0: 2.5 mm spacing 4pin interface
- USB: 1 x USB 2.0 host Type-A; 1 x Micro USB for data transmission and power input
- OS: Android and Debian
- PCB: Six-layer
- Dimension: 75 x 40 mm
- Weight: 22 g
Board Views and Diagram

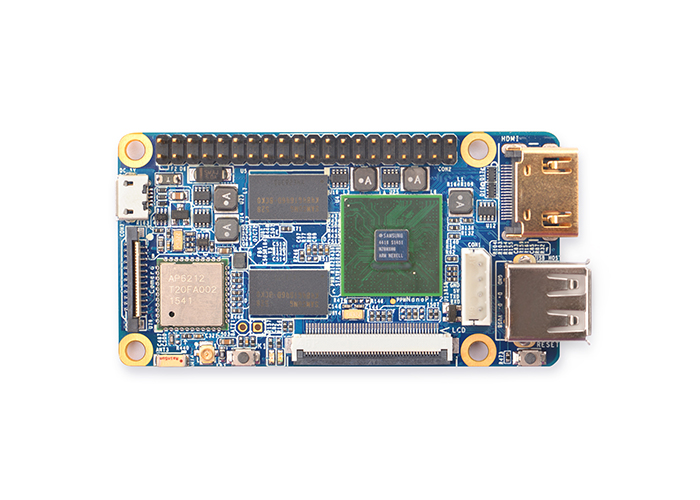

Vertical View (Front)

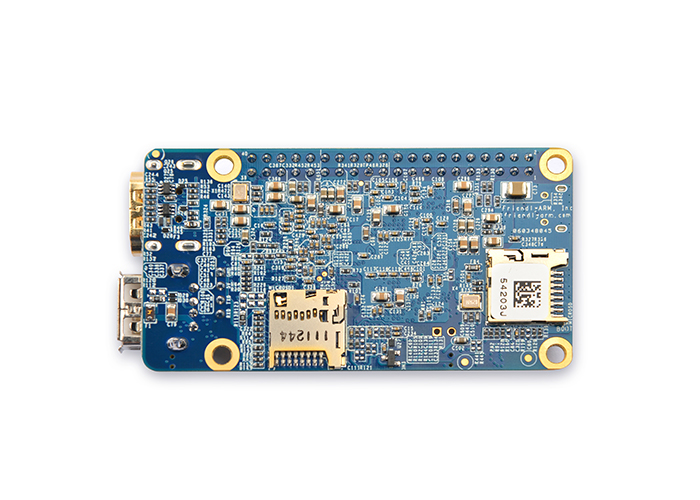

Vertical View (Back)

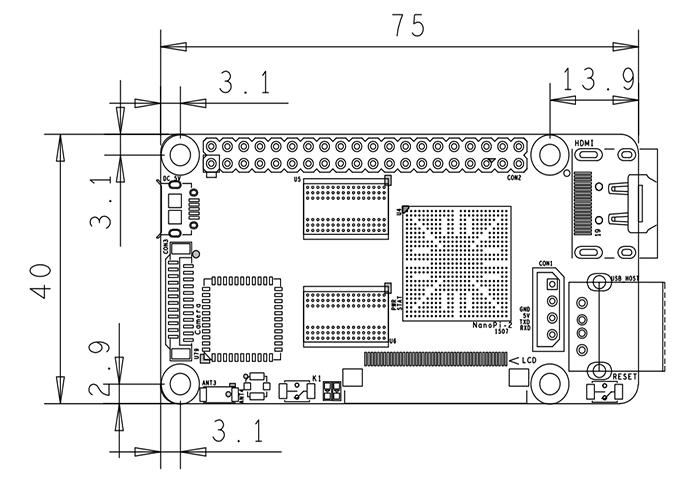

Dimensional Drawing

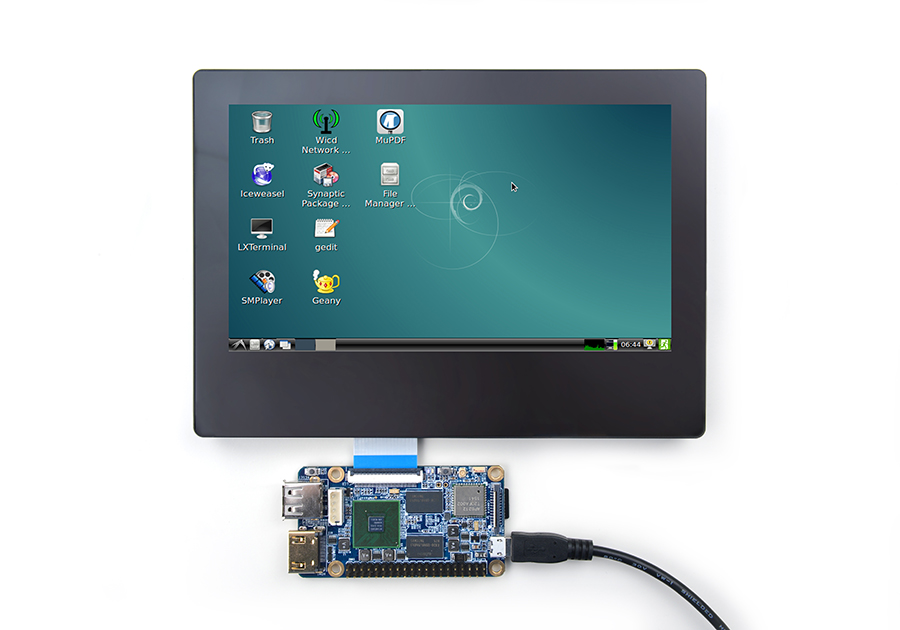

Applications of NanoPi2

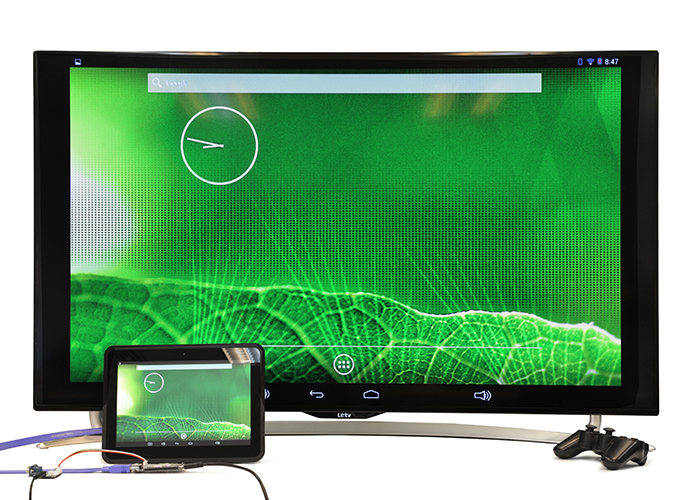

Android
Android 4.4.2 Ready
WiFi and Bluetooth supported. Boot OS from a TF card.
Specifications
| Item |
Details |
| Processor |
Samsung S5P 4418 Quad Core Cortex-A9, 1.4G Hz |
| Memory |
1GB 32bit DDR3 RAM |
| Storage |
2 x Micro SD Slot |
| USB Host |
1 x USB 2.0 host Type-A |
| Micro USB |
1 x Micro USB for data transmission and power input |
| LCD |
0.5 mm pitch SMT FPC seat, full-color LCD (RGB: 8-8-8) |
| Camera |
0.5mm spacing 24 pin DVP interface |
| WiFi & Bluetooth |
AP6212 Wireless and Bluetooth, 802.11 b/g/n, AP mode, BLE 4.0, HS mode |
| GPIO |
40 pin GPIO pin header, compatible with Raspberry Pi’s GPIO pin header |
| Debug Serial Port/UART0 |
2.5 mm spacing 4pin interface |
| Power |
1 x Micro USB for power input |
| PCB Dimension |
75 x 40 mm |
| Weight |
22 g |
How to Order
Please visit our official site: www.friendlyarm.com to place orders .
By default we ship via CHINA POST. It takes up to one month for CHINA POST to ship. If you want us to ship via DHL/Fedex/TNT/UPS please email us at sales@friendlyarm.com
| Item |
Description |
| Order Info |
Price(USD) |
Order It! |
|
 |
NanoPi2 Single Board
- One NanoPi Single Board
- Optional LCD Modules:7" LCD with Capacitive Touch Panel
* It doesn't include any cable sets
* Introductory price: $32 only valid till Jan 1, 2016
|
|
| Item |
Description |
| Order Info |
Price(USD) |
Order It! |
|
|
NanoPi2 Single Board
- One NanoPi Single Board
- 3D housing(white)
* It doesn't include any cable sets
* Introductory price: $32 only valid till Jan 1, 2016
|
|
| Item |
Description |
| Order Info |
Price(USD) |
Order It! |
|
|
NanoPi2 Single Board
- One NanoPi Single Board
- Optional LCD Modules:7" LCD with Capacitive Touch Panel
- 3D housing(white)
* It doesn't include any cable sets
* Introductory price: $32 only valid till Jan 1, 2016
|
|
| Item |
Description |
| Order Info |
Price(USD) |
Order It! |
|
|
NanoPi2 Single Board
- One NanoPi Single Board
- Optional LCD Modules:7" LCD with Capacitive Touch Panel
- 3D housing(white)
* It doesn't include any cable sets
* Introductory price: $32 only valid till Jan 1, 2016
|
|
| Item |
Description |
| Order Info |
Price(USD) |
Order It! |
|
|
NanoPi2 Single Board
- One NanoPi Single Board
- Matrix
* It doesn't include any cable sets
* Introductory price: $32 only valid till Jan 1, 2016
|
|
|
